Safety Valve

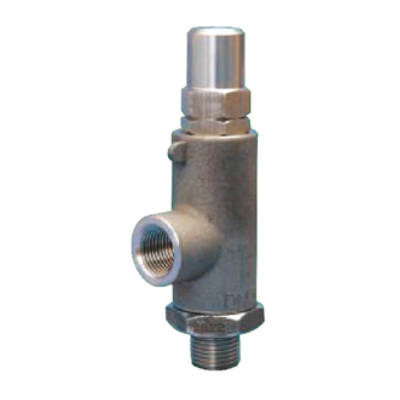

1000 SERIES SAFETY VALVE BARSTOCK (1000SV/1000SRV)
Threaded or Flange connection pressure relief valve conforming to manufacturer standards. The 1000 Series valves are designed and manufactured by Teleflo in compliance with ASME VIII. The Seat tightness, blow-down and capacity on all types of media meets the industry needs for over-pressure protection in chemical, petrochemical, refinery, power generation (nuclear and conventional) and other commercial applications.
- 8100SV - Gas, Vapour or Steam Applications
- 8100SRV - Liquid Applications
Specifications
| Inlet Sizes | 1/4″ to 2″ Threaded or Flanged |
| Outlet Sizes | 1/4″ to 2-1/2″ Threaded |
| Set Pressure Range | 15 psig to500 psig |
| Temp. Range | -20°F to 800°F |
| Materials | Carbon Steel or Stainless steel base with stainless steel trim is standard. |
| Code | ASME Section VIII |
GENERAL INFORMATION

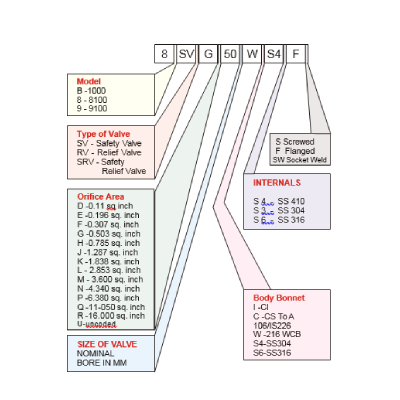

Reliable performance and easy maintenance procedures are characteristics of this valve (when properly installed in suitable applications for its design). The parts are designed so that there is no blow down adjustment required when setting or testing the valve. This product is normally supplied with threaded inlet and outlet connections. Socket weld or flanged end connections are available as well. Product type designations change depending on connection sizes, orifice sizes, pressure range, and whether connections are male or female.
Product Material Variations Include:
- 316 Stainless Steel
- 304 Stainless Steel
- Monel
- Hastelloy
- Alloy 20
- Carbon Steel
