Level Gauges

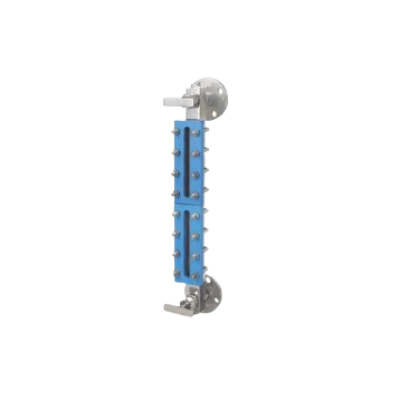

REFLEX GAUGES
These are assembled with flat glasses with inner surfaces of reflecting prisms. Due to total internal
reflection liquid level shows black in contrast to a mirror-like surface above. The gauges are used for
services where observation is required at a distance and on low pressure boilers.
These gauges are constructed with a solid forged steel bar main chamber and cover plates recessed to have perfect alignment of gaskets and glass. Though rated for 2000 psig, these are light weight and hence
do not need any cumbursome supports for medium lengths.-With special main chamber construction
these gauges can be supplied upto,3000 psig at 100 F
- Illuminators: Non-Explosion proof or Explosion proof.
- Shields: Mica, Plastic or frost.
- Ex: 02-RC-NP is a level gauge with two sections each of 10" to make 20" overall length. Reflex type Main Chamber of carbon steel with non explosion proof illuminators and Plastic shield.
- Note: For higher temperature and pressure services each 14' section will be replaced by 2 Nos 7" sections
Glass
Teleflo Engineers’ continuous research, development and experimental studies on glass toughening and composition has made the tempered glasses used in these gauges most dependable providing a high
strength resistant to both thermal and mechanical shocks and with the highest degree of visibility
